Guard Patrol System - STP-5000V5
A Guard Tour Solution is automated system to assist security team organize and execute guard tour plan in their properties. Systems provide a means to check and record the time that a guard executes his guard tour by scanning checkpoints assigned on the area patrols.
A Guard Patrol System helps companies and organizations to organize, log and execute Guard Patrols of their assets ensuring that the officers will accomplish their tasks at specified time and within the predefined time interval. The most common guard patrol system uses handheld devices or better known as tour wand to perform tour rounds and the reports of the patrol rounds retrieval post-tour only. Smartouch Technology offers the new waterproof STP-5000V5 guard patrol system that works well with RFID tags.
Guard System WM-5000P5 is a system that work with RFID tags, which allow guard to clock in during their patrolling activities. Each checkpoints can consist of data collectors, stores the serial number or barcode of the checkpoint with the date and time. Guard Patrol System – WM-5000P5 is also portable and waterproof. It works with RFID tags with a simple non-contact swipe, the reader can read information from the tags, and then upload all the patrol activities record to the management software in a computer for access control system. The information reports can demonstrate the guard system patrolling activities.
Guard Patrol System – STP-5000V5 solutions is an updating product on the basic of STP-5000V+ for access control system, it is with Pogo Pin Connecter instead of the normal USB port, which makes the device more proof guard and waterproof. With its special waterproof pad and adhesive, the reader can work in the water very well. Furthermore, 60000 of data can be stored before the next download.
Features
Military component |
| IP65 durable and waterproof |
| Panic button for emergency situation |
| GSM/GPRS/USB communication with control center |
| Storage Capacity: 16M Flash, 1500 records |
| Rechargeable lithium battery |
Specifications
Its portable, guard system take it as his identification and use reader to read before start patrol.
| Checking place collection way | GPS+RFID |
| Dimensions | 103mmx63mmx25mm |
| Reading Time | ≤0.1S |
| Operating Temperature | -25°to +85°C |
| Humidity | 10% to 90% non-condensing |
| Memory | 4Mb flash ROM |
| Storage Capacity | 15000 pieces records |
| Battery | 3.7 V rechargeable lithium battery |
| Weight | 142g |
| Communication | GPRS sending message or USB cable |
Guard Tour Patrol System
A Guard Tour Solution is automated system to assist security team organize and execute guard tour plan in their properties. Systems provide a means to check and record the time that a guard executes his guard tour by scanning checkpoints assigned on the area patrols. It makes guard patrol easier and solve the problem because of the traditional papery report is easy to cheat. Also, it’s effectively prevent the hidden dangers caused by the careless of watchmen.
The patrolling software helps retrieve the reports by a simple step download data and generate report in PDF format which is easy to monitor. Not only track guard activities and digital footprints, but also allow user to create schedules ensure that security patrolling proceed as planned.
Best Security Patrol Solution - STP-5000V5

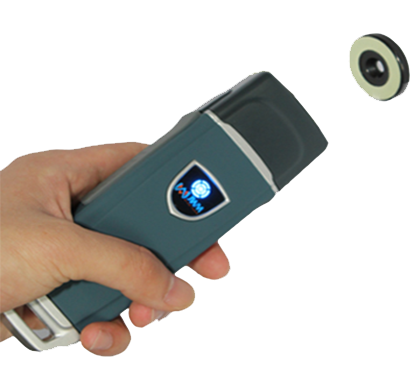

Product Preview
Highlight Features
IP67 Compact Metal Body with Rubber Shell Design
Durable, Drive-Free Magnetic USB and 30% Faster Upload Speed
Light Indicator and Vibration Prompt User Status
Specifications
| Physical | Metal Body, Molded rubber shell |
| Dimensions | 144mm × 47mm × 30mm |
| Working Frequency | 125KHz |
| Operating Temperature | -50°to 186°F (-45°C to +85°C) |
| Humidity | 10% to 98% non-condensing |
| IP Rating | IP67 |
| Storage Capacity | 16M bit flash, 60,000 pieces |
| Battery | Reading 1 record/sec, for 40 hours using. Reading 500 record/day, for 30 days using. |
| Signal Card Detection | Auto induction card-reading |
| Card Reading Distance | RFID 125KHz Reading distance 3cm – 5cm |
| Communication | Pogo pin USB(Drive-Free),15000 record uploading/min |
| Weight | 200g |
| Type of Tag | Round Checkpoint Ф30mm*4mm 2.8g |
* If you wish to include professional service to setup, configure and install, Live Chat with us to get package offer
STP-5000V5 Sample Guard Patrol Report
