Biometric Fingerprint Recognition Device
Advanced Technology of Fingerprint Recognition Device Supplier in Singapore
Smart Touch Technology is a Singapore and Malaysia leading biometric fingerpirnt recognition machine that featuring highly technology of comprehensive products and solutions for a broad range of vertical markets. Biometric fingerprint recognition is a technology capable of identifying or verifying a subject through a thumbprint or fingerprint.
It is a method of biometric identification that uses that body measures, in this case thumbprint, to verify the identity of a person through its fingerprint biometric pattern and data. The technology collects a set of unique biometric data of each person associated with their fingerprint expression to identify, verify and/or authenticate a person.
Features of High Technology Fingerprint Recognition Device
3.5 inch TFT Screen which supports different types of multimedia formats. |
| Storage capacity up to 8,000 templates (1:N) and 200,000 records |
| Internal camera which capture employee face and display out the photo id support user’s |
| Provide extra security with 50 time zone, user grouping level and professional unlocking combination. |
| Easy integration with door lock combination. |
| Practical functions such as T9 input, SMS, work-code enable for user friendly. |
| Versatile interface support options including TCP/IP, RD232/485, USB Host/client, Sim Card 3G/4G. |
| WiFi module 2.4G radio band, and meet the IEEE 802.11b/g/n standards. |
| Support USB host connection to achieve data backup and management while the device is standalone. |
| Built-in International Time-Zone, worldwide connection via HTTP sever – WDMS. |
| Using New BioID Fingerprint Collector for excellent recognition rate. Dry, moist, or rough fingerprints can work well. |
Specifications of High Technology Fingerprint Recognition Device
| Specs/Model | 3G iClock-700 | Wifi-UA670 |
|---|---|---|
| Display | 3.5″ LCD TFT Screen | 2.8′ color screen |
| Transaction Capacity | 200,000 | 50,000 |
| Verification Speed | <1 Sec | <1 Sec |
| Fingerprint Capacity | 8,000 | 1,000 |
| Size | 225 x 165.5 x 50mm | 186x138x43.6 mm |
| Temperature Range | 0°C – 45°C | 0 °C – 45 °C |
| Access Control Features | Electric lock, dooe sensor, exit button, alarm, door bell, anti-pass back | 3rd Party Electric Lock, Exit Button |
| Power supply | 12V DC 3A | DC 12V/1.5A |
| Communication | 3G, TCP/IP, RS232/485, USB-client, USB-Host | TCP/IP, WiFi, USB-host |
Features of Basic Fingerprint Access Control Device
ST-804 Fingerprint Door Access Terminal
- Integrated management of access control and the attendance
- 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
- Supports registering fingerprints from the terminal to software remotely
- Max. 3000 users, Max. 3000 fingerprints and Max. 100,000 event records
- Two attendance authentication modes: authentication by person, authentication by device
- Stand-alone operation: locally add person, card and fingerprint information
- Exports the swiping card data and the attendance report to the USB
- Up to 32 normal shifts and up to 32 man-hour shifts can be configured
- Up to 32 attendance holiday schedules and up to 128 access control holiday schedules can be configured
- Generates the attendance report automatically and view the attendance data easily
- The doorbell can connect the third party bell
- Tamper alarm and duress alarm function
- It is available to connect the external secure door control unit via RS-485 to avoid the door opening when the terminal is destroyed

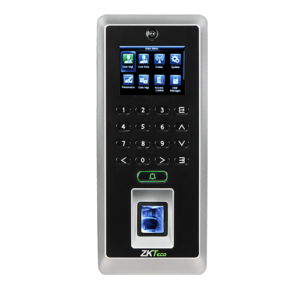

ST-21 Fingerprint Access Control Terminal
- Full Access Control Features
- 2.4-inch TFT color screen
- Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices
- Camera Function: record photo, photo ID (optional)
Full Access Control Features: - Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
- Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
- Silk ID fingerprint reader with living object detecting function
Specifications of Basic Fingerprint Access Control Device
| Specs/Model | ST-804 | ST-21 |
|---|---|---|
| Display | 2.4-inch (320 × 240 LCD-TFT Display Screen) | 2.4-inch TFT color screen |
| Card capacity | 3,000 | 5,000 |
| Verification Speed | <=1 sec | <=1 sec |
| Fingerprint capacity | 3,000 fingerprints, 100,000 events storage, Up to 150,000 Attendance Records | 3,000 fingerprints, 50,000 attendance records |
| Access Control Interface | Exit Button × 1, Door Sensor × 1 and Alarm Input × 1 Relay (Lock Output) × 1, and Alarm Output × 1 | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, and Door Bell |
| Size | 205 mm × 76.5 mm × 37 mm | 80(W) x 183(L) x 42(T) mm |
| Power supply | 12 VDC/2 A | 12 Volt DC 3A |
